Automatic Tilting Welding Rotary Positioner Heavy Duty 20 Ton

1. Introduction

Conventional rotary welding positioners are designed for maximum loads of 5,000KG to 20,000KG have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made rotary welding positioners according to your special requirements.

2. Main Parameters

3. Main features

The standard models of our conventional rotary welding positioners have the following features:

• Free standing, robust all steel fabrication;
• Variable speed table rotation controlled by inverter;
• Motor with brake;
• Fully machined turntable of various sizes with centering grooves and T-slots;
• Sand blasting treatment to main welding parts before painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard;
• Efficient built-in earthing;
• Lifting lug on the base of roller bed;
• Standard color:

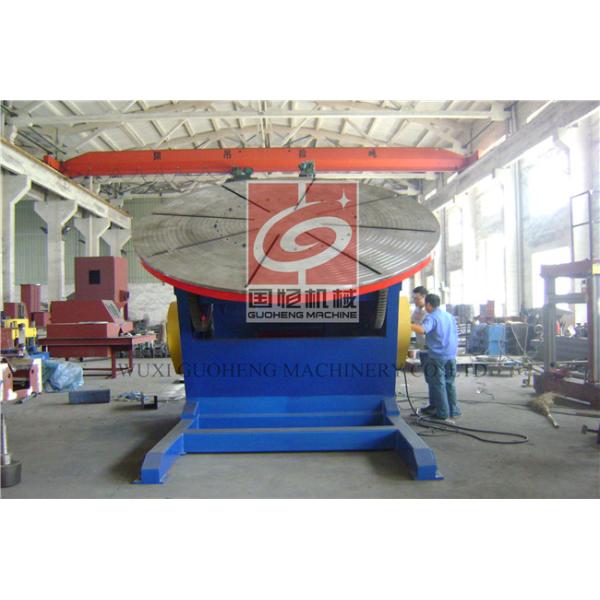

4. Reference photos

Rotary Positioners

pipe welding positioners
